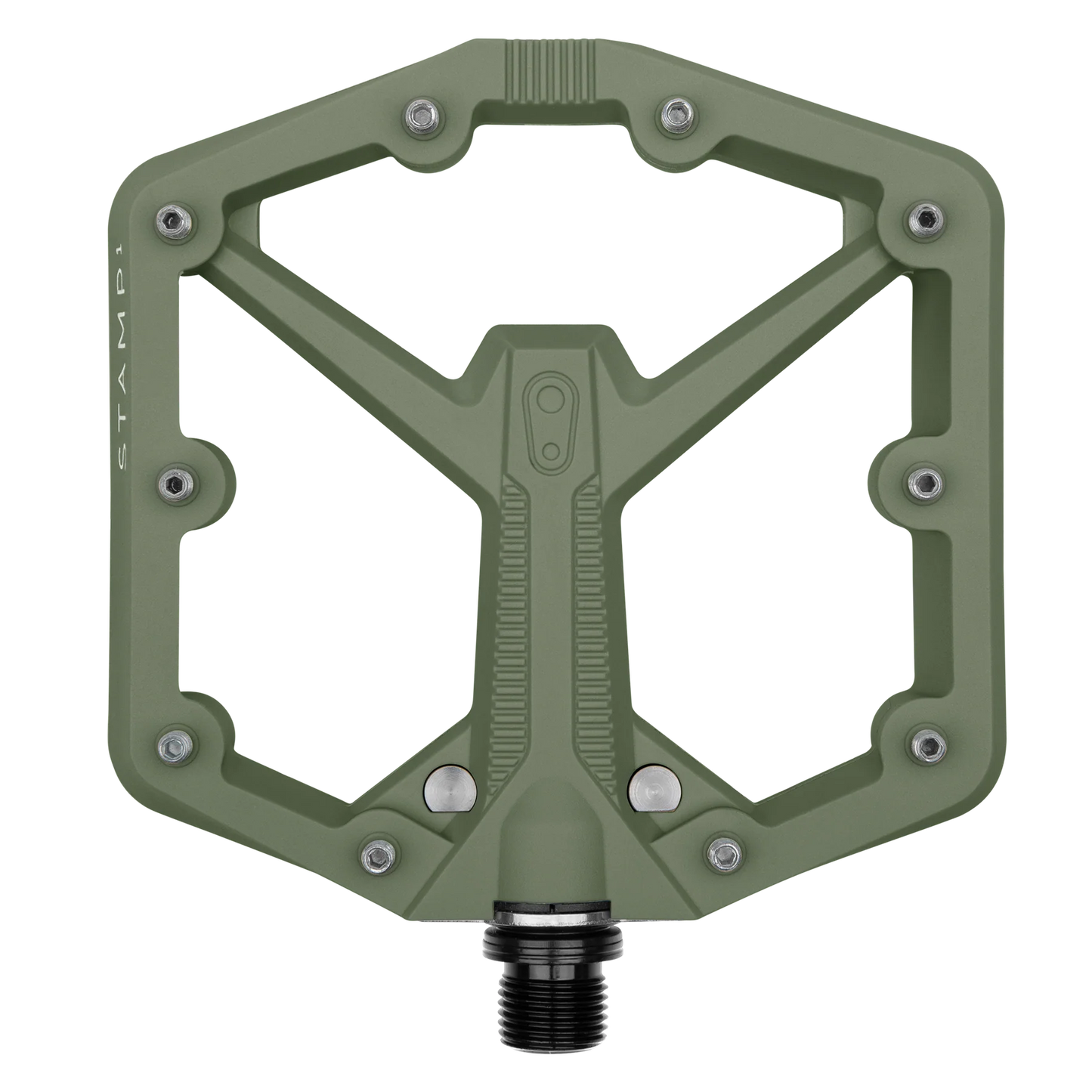

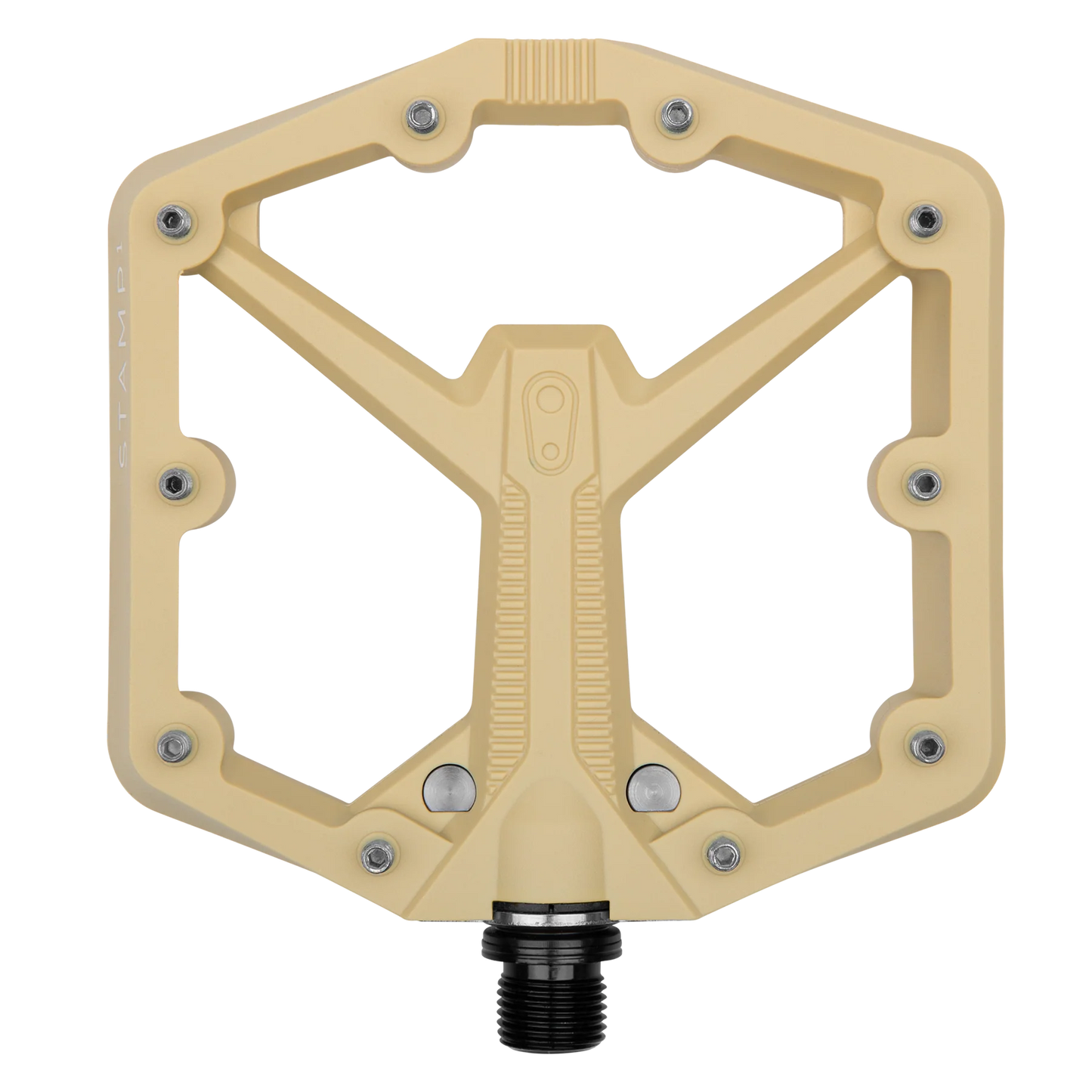

Crank Brothers Stamp 1 (Gen 2) Pedals

The new Stamp 1 Gen 2 builds upon the Stamp legacy with a true concave body design for enhanced on-trail confidence, trusted Igus internal components for durability, and a new one-piece pin design for maximum grip and easy pin replacement.

Crafted with an uncompromising commitment to quality, the updated Stamp 1 pedal boasts a robust nylon composite body and inherits the tried-and-true internals from Crankbrothers' award-winning Stamp 7 flat pedals, keeping you supported lap after lap.

Features:

• A true concave body design cradles your shoe and provides un-interrupted contact with the pins, eliminating "axle bump" or bulge down the centerline of the pedal, resulting in consistent, confidence-inspiring grip
• The Stamp 1 Gen 2's lightweight nylon construction doesn't skimp on durability - it's sleeker yet more robust than the previous iteration.
• Optimal size-specific surface area
• Thin, concave profile - 13.5 - 15.5 mm pedal body height
• New one-piece replaceable traction pins, 10 per pedal
• Upgraded, fully serviceable IGUS bearings & seal system
• Stamp Small recommended for shoe sizes: 3 - 10 (US M) // 37 - 43.5 (EU)
• Stamp Large recommended for shoe sizes: 10 - 15 (US M) // 43.5 - 49 (EU)

Specifications:

• Footprint:
  • S: 100 x 100 mm
  • L: 114 x 111 mm
• Weight:
  • S: 321 g per pair
  • L: 348 g per pair
• Bearing Type: Igus LL-glide bearing
• Traction Pins: 10 replaceable pins per pedal
• Pin Length: 23 mm inner, 25 mm outer
• Spindle Material: Forged SCM 435 Chromoly Steel
• Body Material: Nylon Composite
