CHROMAG

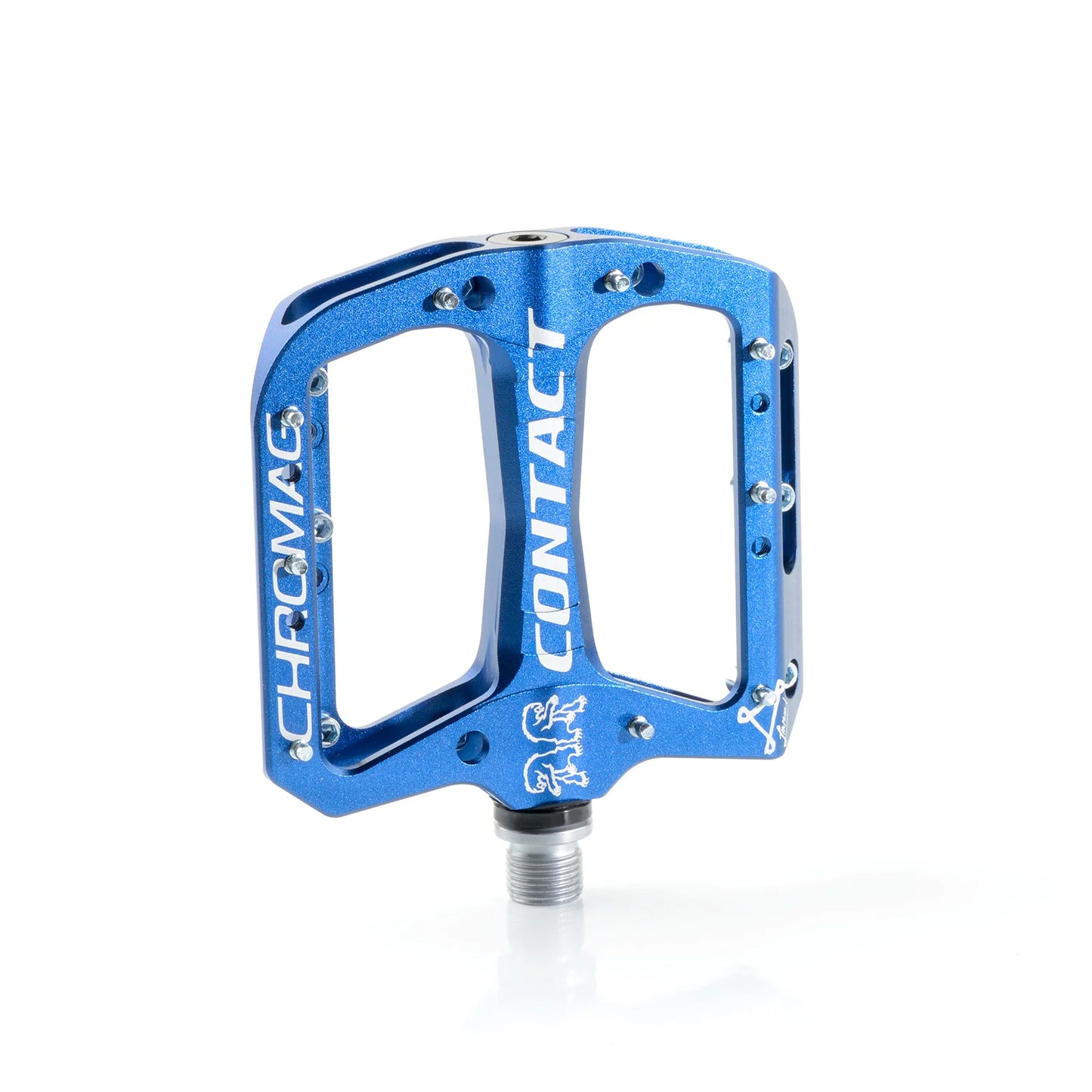

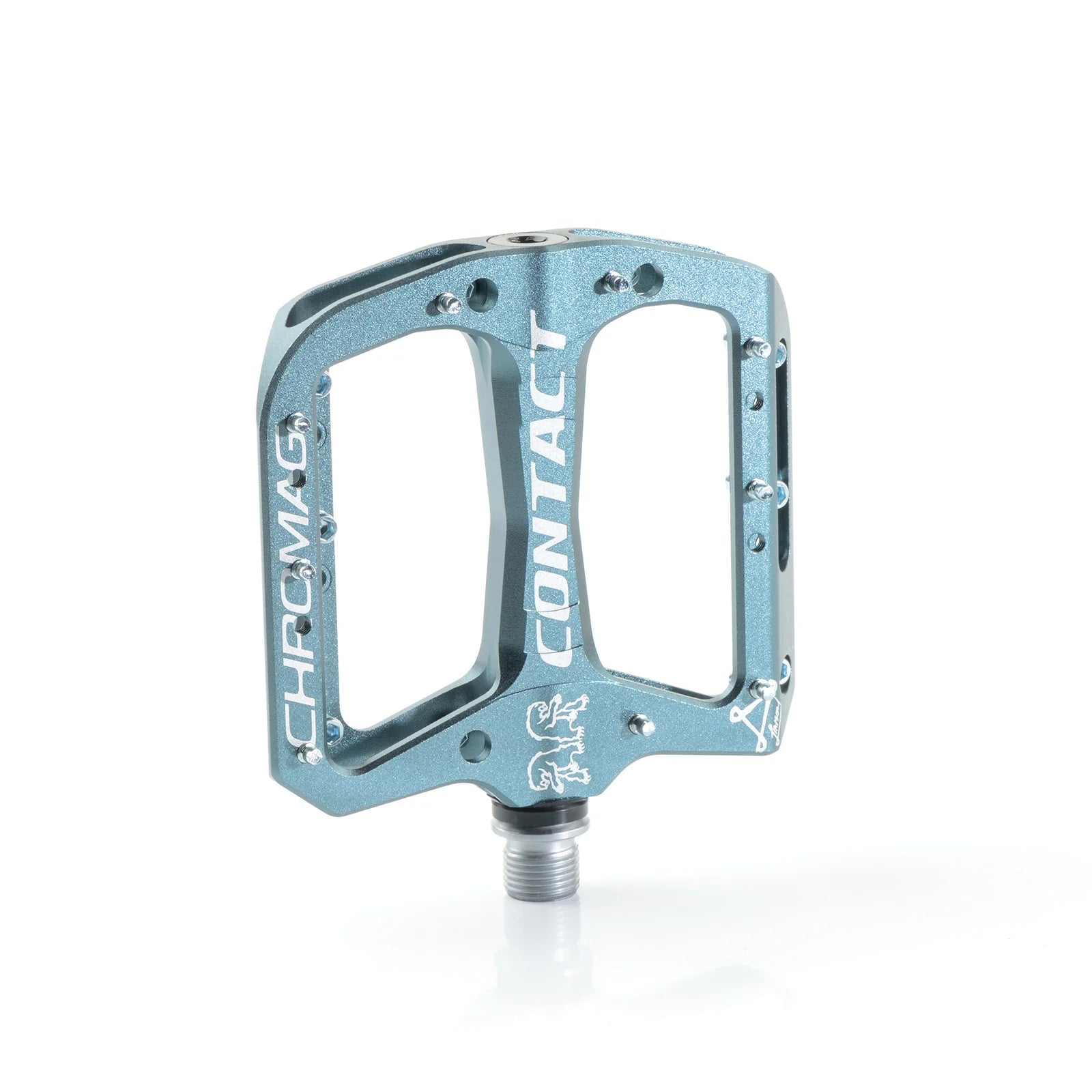

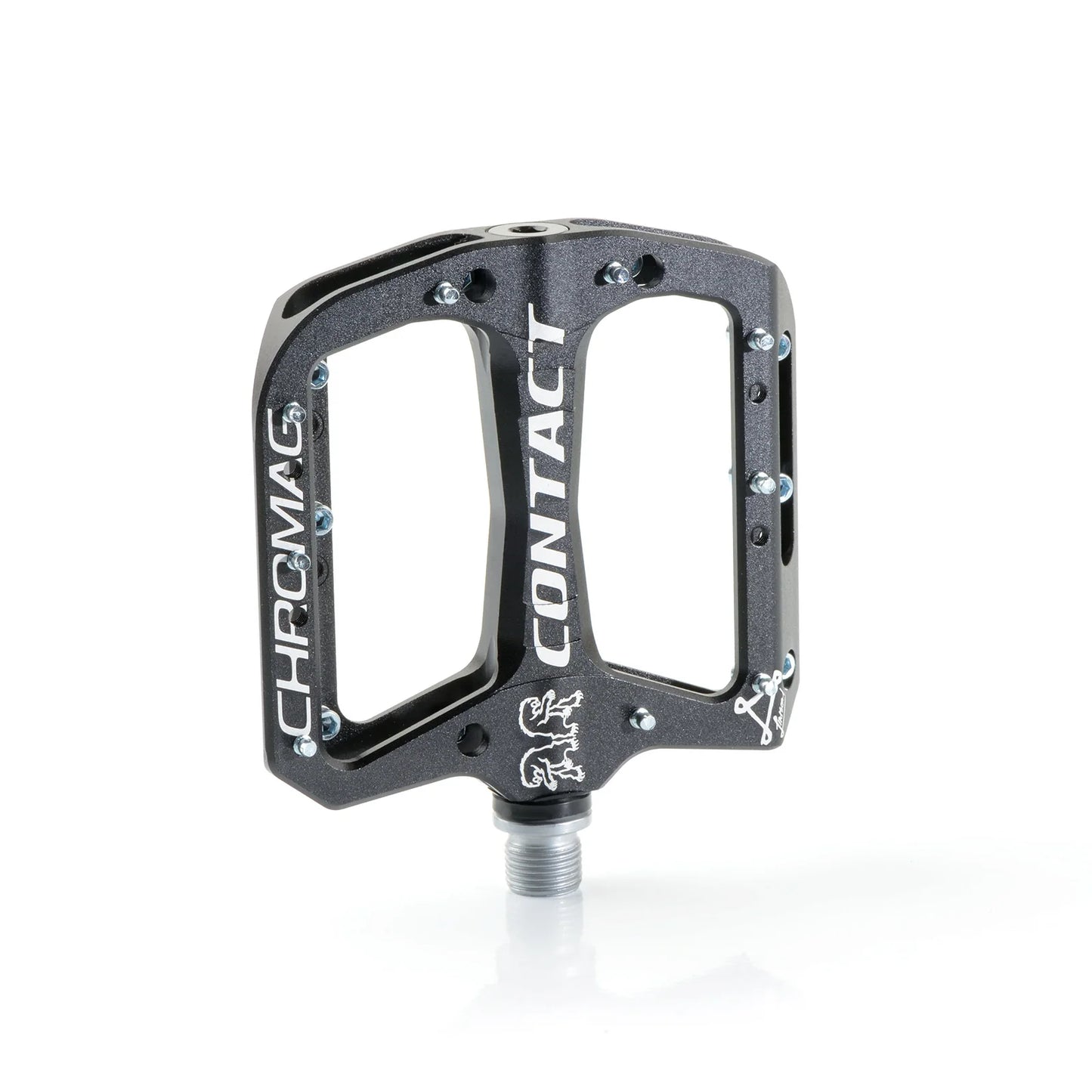

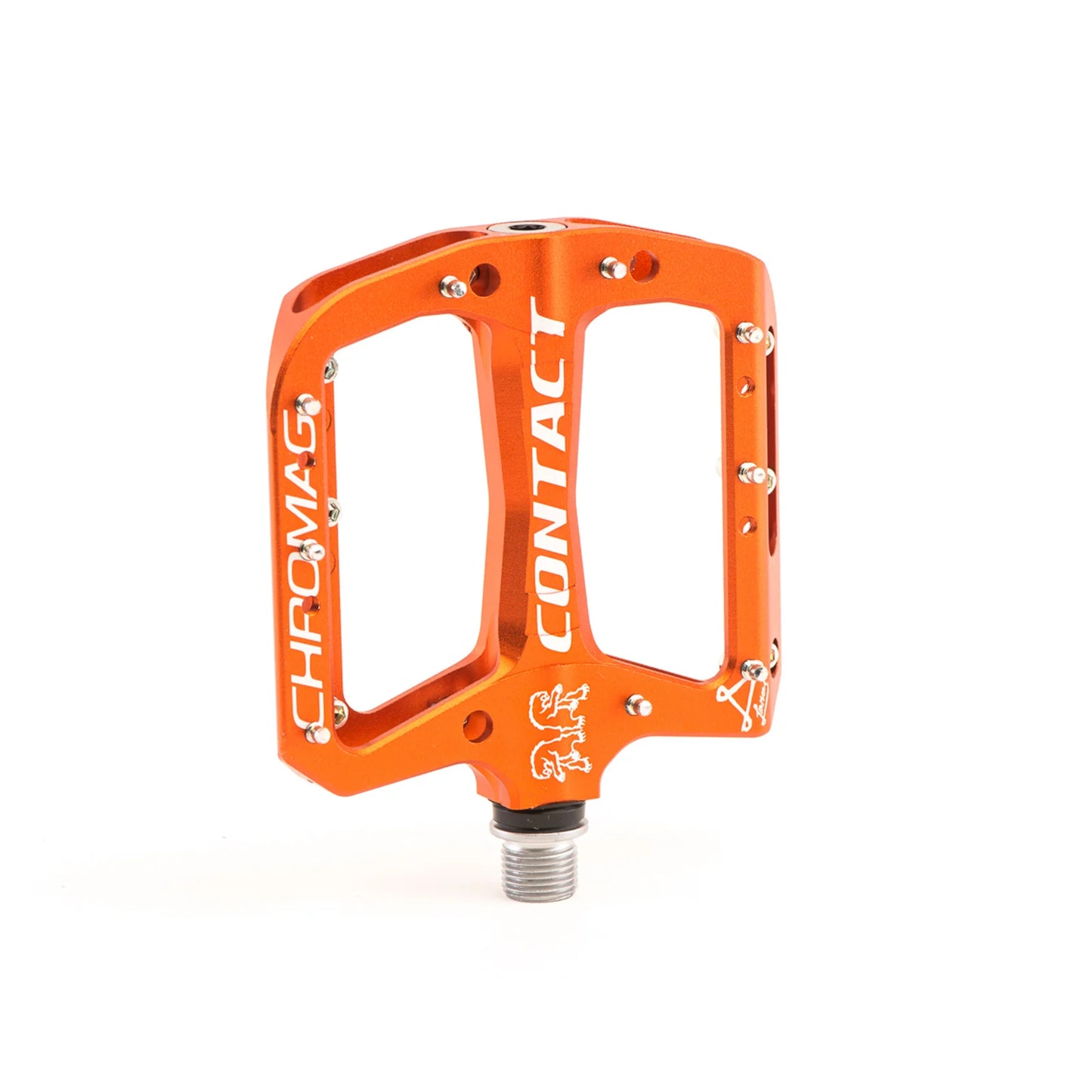

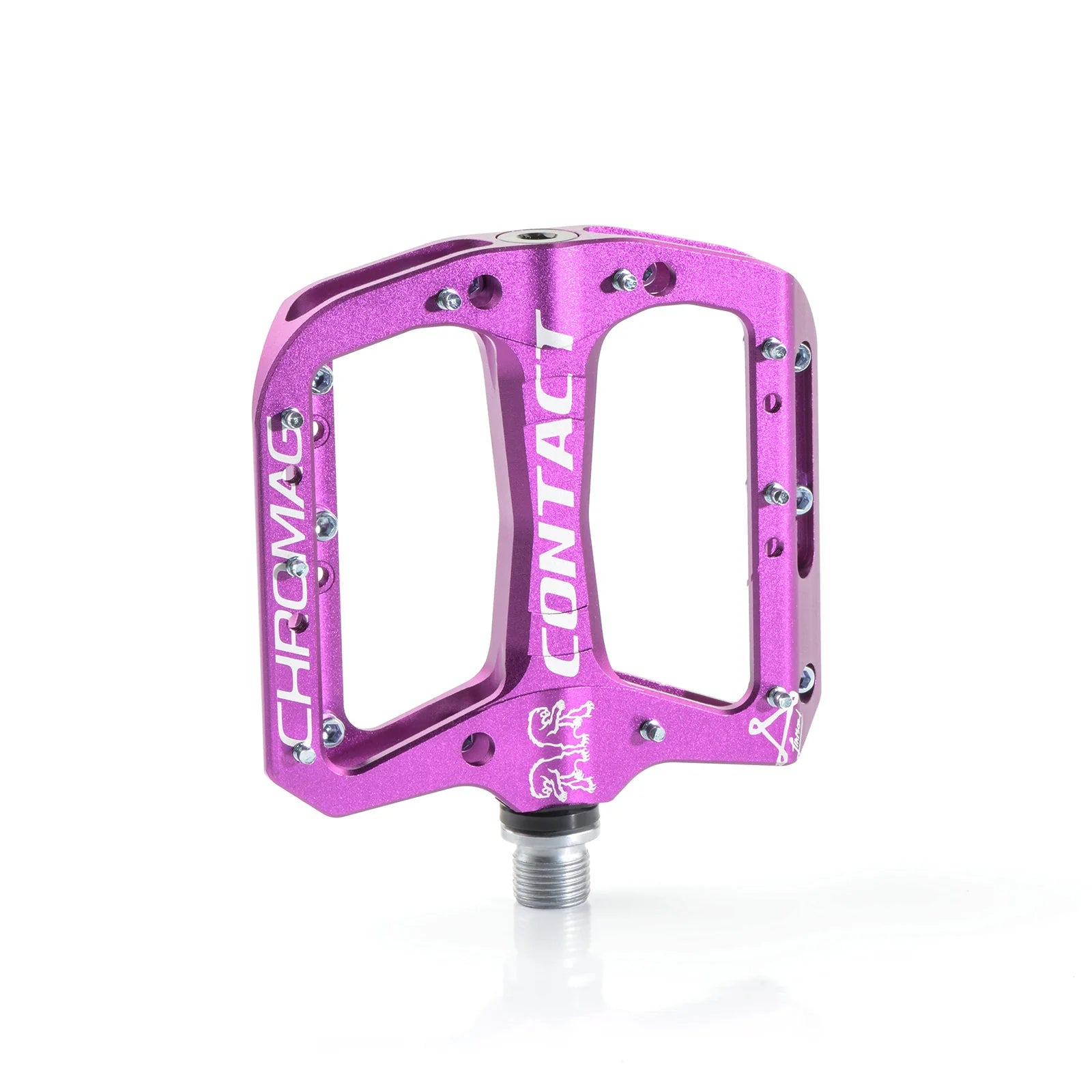

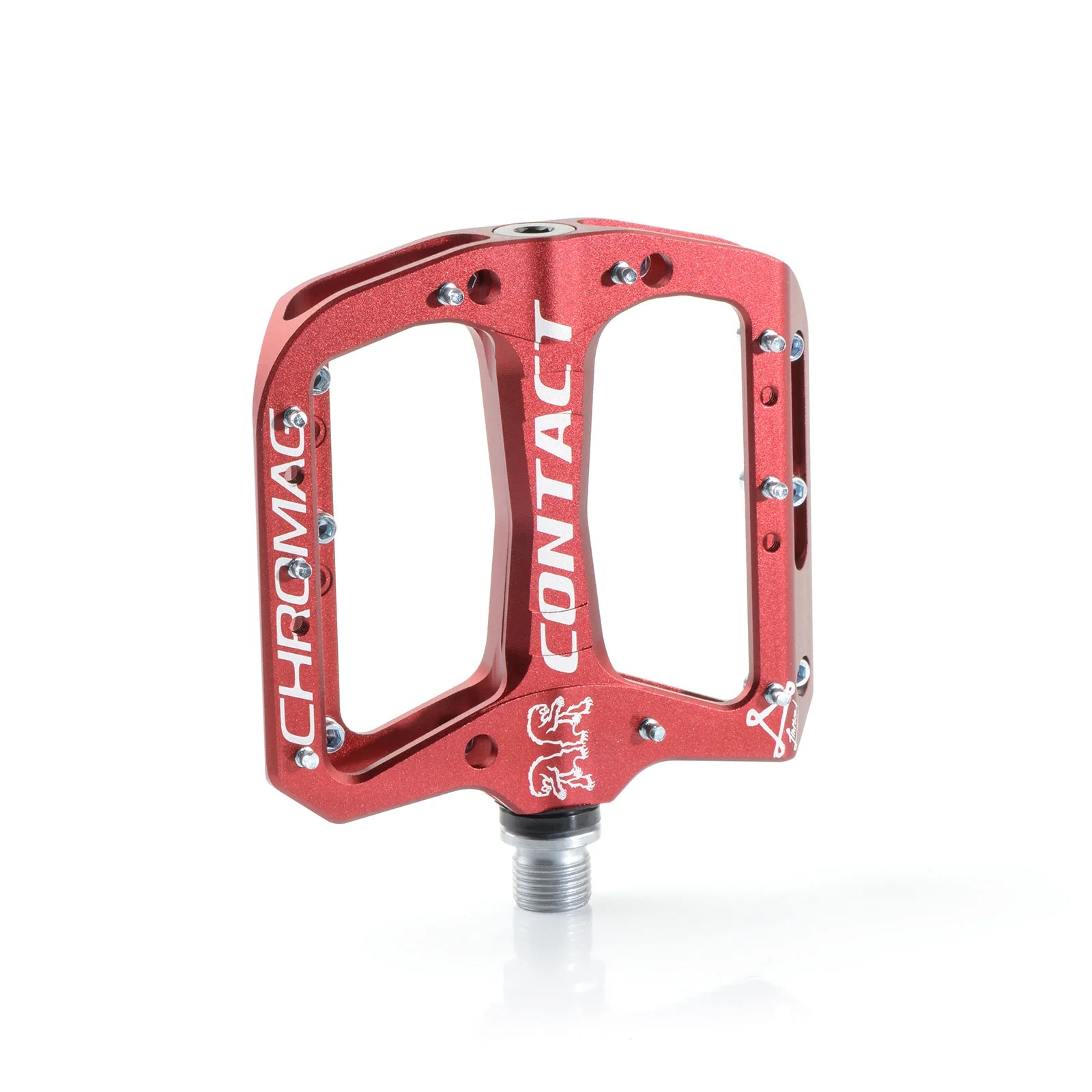

Chromag Contact Pedal

Chromag Contact Pedal

Regular price $155.00 CAD
Regular price Sale price $155.00 CAD
Sale Sold out
Color: Silver
Quantity

Designed with Brandon Semenuk to have a lightweight compact platform body that extends inboard bringing the riders feet closer to the cranks for trick control or simply a compact stance.

☛ Lightweight platform with inboard orientation
☛ CNC machined from extruded aluminum with concave surface that is only 13mm at center
☛ 18 height adjustable traction pins/pedal with alternate placement holes
☛ G3 Axle system featuring hardened chromoly axle, dual seals, inner bushing and precision cartridge bearing

☛ Pair of pedals
☛ Spare pedal pins and washers for adjusting the pin height

☛ Alloy, extruded / machined body
☛ Precision ground, hardened chromoly axle
☛ High density polymer bushing
☛ Cartridge bearing

Specs

Profile // Concave Design, 13.0mm at platform center

Material // Alloy, extruded then machined

Platform // 100mm x 100mm

Stance // 58.5mm

Pins // 18 per pedal, adjustable height

Weight // 416g/pair

CNC Machining

CNC Machining is a process in which a piece of raw material or stock is cut into a final desired shape using a computer controlled machine and often several different machine tools. Depending on the operation in question different tools are called, for example ball mills, end mills, thread mills, taps and slitting saws to name a few, all have different uses and come in all manner of shapes and sizes.

Machining produces extremely accurate parts, often to within 0.001" (I know, Canada is mostly metric but the industry predominately uses imperial units), and is renowned for creating a very high-end look with 3D surfacing and clean, strong edges which forging cannot produce.

Because every aspect of the part must be "cut out" machined parts take a long time to produce. A Ranger body for example takes 20 minutes to machine (the face plate is made separately), then it still needs to be deburred, quality checked, anodised, laser etched and assembled.
